Power vs. Agility: Choosing Between Shimano CoreSolid and MagnumLite Spinning Reels

Date:	10/1/26
Tackle type:	Reels
Manufacturer:	Shimano
Reviewer:	Zander

Introduction: One of the questions we receive most often when discussing and reviewing Shimano spinning reels is a deceptively simple one: What is the difference between CoreSolid and MagnumLite, and when should I choose one over the other? It's a fair question. Shimano has built an extensive lineup of spinning reels around these two distinct design philosophies, and while the differences may not always be obvious from a specification sheet, they become much more apparent once you spend time fishing them.

Shimano has a lot of spinning reels in their lineup and they fall into two distinct design camps, CoreSolid and MagnumLite

Power Versus Agility: For us here at TackleTour the easiest way to understand the distinction is to think of CoreSolid as power and MagnumLite as agility. CoreSolid reels are designed around a solid, continuous drive, with a rigid rotor that carries momentum through each rotation. They're at their best when you're steadily winding against a loaded lure, whether that's a hard bait, swimbait, or vertical presentation.

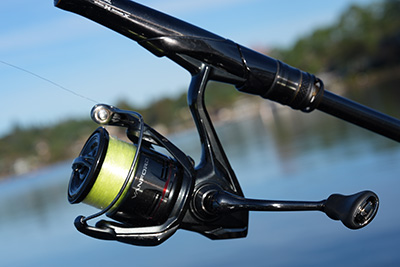

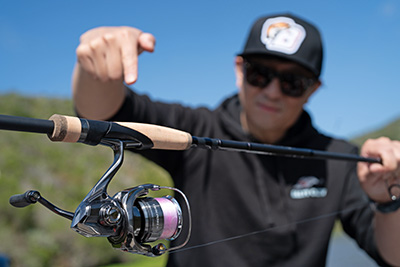

MagnumLite or MGL reels like the Vanford tend to feel lighter due to their materials but how they "feel" is also due to their design

On the other side MagnumLite, or MGL, takes the opposite approach. Its lightweight, asymmetrical CI4+ rotor is designed to minimize rotational inertia, allowing the reel to start and stop quickly. That responsiveness makes MGL particularly well suited to technical presentations where precise lure control and frequent changes in cadence are critical.

One of the questions we get a lot are what is the difference between CoreSolid and MGL reels and is one better than the other for certain applications?

Neither design is inherently better than the other. They're simply optimized for different ways of fishing. So, that begs the question when does it make sense to choose the power of CoreSolid over the agility of MagnumLite, and when does MGL give you the advantage? Let's take a closer look.

Two Philosophies, One Key Component: At the heart of the CoreSolid and MagnumLite distinction is the rotor. The rotor is responsible for rotating around the stationary spool and laying line back onto it during the retrieve. How Shimano constructs that rotor, and how much inertia it carries, has a major impact on the personality of the reel. What may be hard to distinguish at first becomes obvious when you start comparing the two distinct designs.

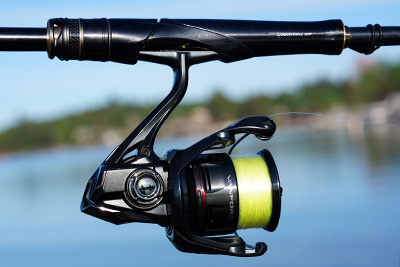

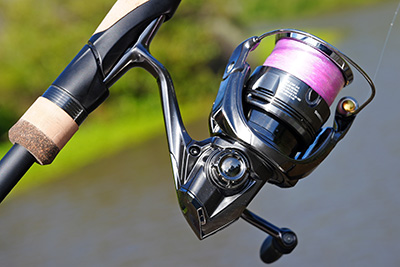

CoreSolid reels like the TwinPower are built with solid cranking power in mind

With CoreSolid, Shimano utilizes rotors constructed from materials such as metal or high-strength composites. The additional rigidity and moderate rotational inertia create what Shimano describes as a solid and powerful winding feel. Once the rotor begins moving, its momentum helps carry it through subsequent rotations.

MagnumLite approaches the same job differently. MGL reels employ a lightweight CI4+ carbon-reinforced resin rotor with an asymmetrical design. Reducing the mass and rotational inertia of the rotor means less force is required to start, and stop, its rotation. That difference creates two distinctly different sensations at the handle.

CoreSolid wants to maintain momentum. MagnumLite wants to respond to input. Understanding that distinction is the key to understanding the two reel families.

CoreSolid Feel: Power and Continuous Drive: Shimano characterizes CoreSolid with two words: Power: Solid, Continuous Drive. CoreSolid's rigid rotor construction provides rotational power with momentum that carries through each turn of the handle. Instead of feeling exceptionally light and quick, the retrieve feels deliberate, smooth, and connected.

The advantage of CoreSolid becomes apparent when the reel is placed under a continuous load. Imagine steadily retrieving a swimbait. The lure's tail and body are creating resistance throughout the retrieve, meaning you're continuously winding against that resistance. Once the CoreSolid rotor is moving, its rotational momentum helps maintain that motion. Rather than repeatedly overcoming the inertia of the rotor, you're allowing that inertia to work for you. The result is the substantial, fluid retrieve that many anglers associate with Shimano's premium spinning reels.

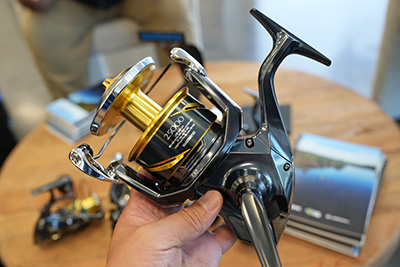

CoreSolid reels feature a symmetrical rotor design. There is a reason why the biggest most robust saltwater spinning reels like the Stella are CoreSolid reels... it is all about a confident retrieve and smooth cranking power under load

This is also where rotor rigidity becomes important. Shimano's higher-end CoreSolid reels, including Stella and Twin Power, employ metal rotors designed to minimize flex and distortion under heavy loads. The result isn't simply a feeling of power but also greater stability when the reel is being pushed hard.

I feel like CoreSolid as being best suited to high-inertia techniques requiring steady reeling under load. If you're spending much of the retrieve continuously turning the handle while the lure, current, or fish is placing resistance against the reel, CoreSolid starts to make a lot of sense. Some good applications include fishing hardbaits, swimbaits and paddletails, underspins, vertical jigging, and applications requiring sustained winding power.

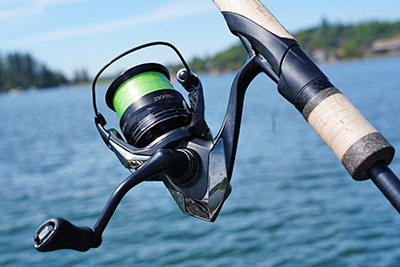

CoreSolid reels are good for applications that require continuous retrieve

The common denominator with all these applications isn't necessarily lure weight. It's continuous load. For these techniques, the additional rotational momentum isn't something you're fighting, it is actually helping you.

The CoreSolid Tradeoff: Of course, the same characteristic that makes CoreSolid so effective for continuous retrieves can become a disadvantage when the presentation requires constant changes in cadence. Inertia works both ways.

A rotor that wants to keep moving requires more energy to initially start moving and more effort to stop than a very low-inertia rotor. That difference might be insignificant when you're steadily retrieving a swimbait, but it becomes much more noticeable when your retrieve looks something like this: Turn. Stop. Turn. Stop. Half turn. Pause. Turn again. Which is common with certain finesse and scoping techniques. A CoreSolid reel can absolutely perform these techniques, but its design isn't optimized around them. That's where MagnumLite comes in.

MagnumLite reels excel when agility to move baits is required

MagnumLite: Agility and Lightning-Fast Response

If CoreSolid is Shimano's power platform, MagnumLite is all about agility.

Shimano describes MGL as delivering lightning-fast response, and the key to achieving that response is reducing the amount of inertia required to start the rotor moving. The lightweight CI4+ MGL rotor uses an asymmetrical construction designed to reduce rotational mass while maintaining rigidity. Because there is less inertia to overcome, the rotor responds more quickly to movements at the handle. Turn the handle and the rotor immediately reacts. Stop turning and it stops quickly. Move the handle another quarter turn and the reel responds again. That responsiveness gives MagnumLite reels a very different personality from their CoreSolid counterparts. Where CoreSolid feels deliberate and powerful, MGL feels light, immediate, and eager to react.

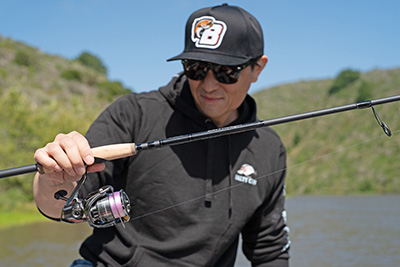

I like MGL reels for finesse applications that require a lot of start and stop type retrieves to bring baits to life

The MGL Rotor: There is more going on here than simply making the reel lighter. Shimano redesigned its newer-generation MGL rotor from a symmetrical to an asymmetrical layout, repositioning the bail arm mechanism to the opposite side of the line roller to improve balance. Shimano also utilizes a lightweight line roller, titanium bail, and optimized rotor thickness on applicable models.

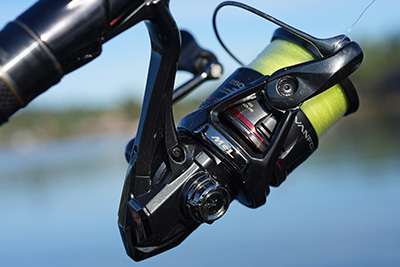

The MGL spool design is all about reducing rotational inertia

According to Shimano, the newer MGL rotor design can reduce rotational inertia by up to 14 percent while increasing rotor rigidity by up to 30 percent compared with conventional designs. That second figure is particularly noteworthy because it addresses one of the natural concerns with a lightweight rotor. Reducing inertia isn't particularly useful if doing so makes the rotor excessively flexible. The goal is to achieve both low inertia and sufficient rigidity, allowing the rotor to respond quickly without sacrificing control under load. It's also important to separate overall reel weight from rotational inertia.

MagnumLite reels tend to be very light, but simply looking at the weight column on a specification chart doesn't tell the entire story. It's the reduction in the rotor's rotational inertia that creates the immediate start-and-stop response anglers feel at the handle.

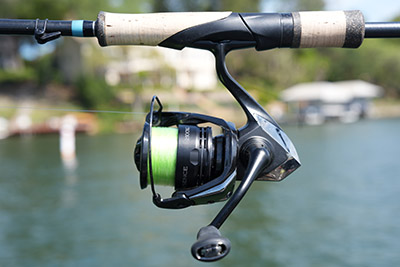

The Vanford FA is a great workhorse MGL reel that retails for under $300

Where MagnumLite Excels: Shimano categorizes MGL reels as best suited for low-inertia techniques demanding precision and rapid start/stop control. Examples of this include fishing drop shot, ned rigs, neko rigs, shaky heads, tubes, finesse jigs, and other finesse presentations requiring precise lure control.

Think about fishing a drop shot. You may pick up a little slack with a fraction of a handle turn, stop, work the bait with the rod, move it slightly, stop again, and then quickly pick up line when you detect a bite. There is very little continuous winding involved. Instead, you're constantly asking the reel to start, stop, and react. That's precisely the environment in which MagnumLite makes sense. The same applies to strolling, where subtle adjustments in line tension and lure position can be critical, or finesse jig and worm presentations where the reel is frequently being used to pick up small amounts of slack rather than continuously retrieve the lure. In these applications the spinning reel becomes less of a winch and more of a precision tool.

But for extreme performance in the MGL line it is hard to beat the Exsence B (or Dark Stella as enthusiasts call it). The Exsence feels extremely light during startups giving anglers more precise lure control

Another interesting aspect of the MagnumLite concept is the relationship between low inertia and perceived sensitivity. This doesn't mean an MGL reel somehow makes your rod blank more sensitive. Rod construction, line choice, lure weight, and the complete system all contribute to what reaches the angler's hand. Instead, reducing rotor inertia minimizes resistance to small changes in handle movement. This lower-inertia design helps anglers detect subtle lure vibrations and changes in line behavior more easily. The reel feels more directly connected to the presentation because there is less rotational momentum influencing what happens at the handle. This is also one of the key reasons MGL reels often feel particularly good paired with today's increasingly lightweight and sensitive finesse rods.

CoreSolid vs. MagnumLite: Power vs. Agility: Strip away the individual technologies and model names and the difference becomes pretty straightforward:

CoreSolid = Power VS. MagnumLite = Agility

CoreSolid's higher-inertia rotor is designed to maintain momentum, producing a powerful, stable, continuous retrieve. MagnumLite's low-inertia rotor is designed to respond quickly, producing precise start-and-stop control.

I love drop shot and Ned fishing with MGL reels

Choosing Between CoreSolid and MagnumLite: One of the easiest ways to decide between the two is to forget about model names and price for a moment and think about what your hand does during a typical retrieve. If your retrieve looks like: Turn... turn... turn... turn... turn... CoreSolid probably makes more sense. If it looks like: Turn... stop... half-turn... stop... turn... stop... MagnumLite has the advantage.

If you primarily cover water with reaction presentations and steadily wind against the resistance of the lure, the momentum and solidity of CoreSolid complement that style of fishing. If you slow down and pick apart an area with finesse techniques, frequently starting and stopping the retrieve and making precise adjustments to the lure, the agility of MGL complements that style instead.

Conclusion and TackleTour Picks: Simply put, CoreSolid is built to keep going. MagnumLite is built to react. One gives the angler power through momentum; the other provides agility through reduced inertia. That distinction may ultimately be more important than a few tenths of an ounce on a specification sheet. But it wouldn't be TackleTour without making a few picks of our own.

My favorite CoreSolid reel with price being a factor is the TwinPower

When it comes to CoreSolid reels, it would be easy to say the Stella is my favorite, and for the enthusiast, it probably should be. But when it comes to bang for the buck, my recommendation is the Stradic. My personal favorite, however, is the Twin Power FE, which delivers much of what makes the Stella so impressive in terms of power, refinement, and overall feel, but at a considerably more "attainable" $494 compared to the Stella's $864 price tag.

I naturally gravitate more towards MGL spinning reels due to the fact I turn to spinning reels for finesse applications

I personally fish more MagnumLite reels because, when I reach for a spinning setup, it's usually for a finesse-oriented application. My go-to spinning techniques include the drop shot, Ned rig, worming, finesse jigs, and the occasional strolling. Within the MGL lineup, I recommend the Vanford as the affordable workhorse. The new Sustain is an impressive step forward in the mid-range, with substantial improvements over the previous generation in both styling and refinement, but my personal favorite is hands down the Exsence B.

The Vanford is a great reel for the money but the Exsence B is my MGL recommendation for spinning reel enthusiasts looking for a finesse fishing weapon

At $649, the Exsence B is certainly an investment, but it just feels like the most agile and refined of all the MagnumLite reels I've fished. It also gets my vote for the coolest finish, with its murdered-out, all-matte-black treatment. This is the reel Batman would fish.

Choosing CoreSolid vs. MGL reels depends more on your personal style of preferred fishing techniques than anything else. You could certainly use a CoreSolid reel for finesse and a MGL reel for hardbaits and vice versa, but they excel when fished with "power" vs. "agility" in mind

All jokes aside, the best Shimano spinning reel isn't necessarily the lightest, strongest, or most expensive model. It's the one whose personality matches the way you fish, and that's ultimately the beauty of Shimano's CoreSolid and MagnumLite approach. Rather than forcing anglers into a one-size-fits-all definition of the "best" spinning reel, Shimano offers two distinctly different personalities, one built around power and continuous drive, the other around agility and response.

CoreSolid is built to keep going. MagnumLite is built to react. The trick is figuring out which one matches you.
